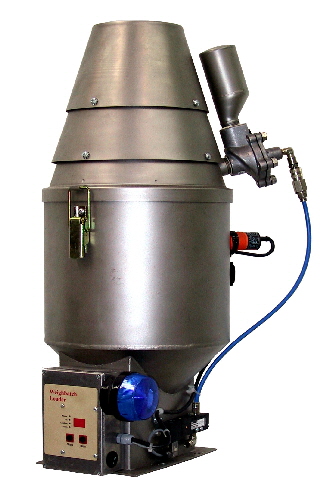

Single Phase Hopper Loader - AutoVac
Completely Self Contained
High Efficiency Single Phase Vacuum Motor
Pneumatic Filter Back Flush
Slimline Compact Design
The AutoVac range of hopper loaders are fully self contained single phase units. They use bypass vacuum motors mounted inside the hopper loader. These can be either brush commutated or a brush less electronic version. The hopper loaders are stand-alone with on board controller and internal filters with pneumatic blow back filter cleaning.
These hopper loaders are able to generate a medium level of vacuum suitable for conveying distances up to 15 m. There are three sizes available with recommended throughput up to 250 kg/hr.
Features:
- Self contained vacuum loader powered by 1 kW single phase motor.
- Loading cycle controlled by level sensor with timer running in background, the loader will alarm if level not reached in designated time giving early indication of material supply issues.
- Dynamic and static parts in contact with material are stainless steel.
- Fabric filter with automatic back flush cleaning after every cycle for maximum filter life.
- Models available for up to 250 kg/hr.
- Slimline design facilitates multiple loaders in close proximity eg. on MiniBlend gravimetric blender.
- Electrical supply 230 V, single phase, pneumatic air 6 bar, dry and filtered.
