Get the best of both worlds Integrated Gravimetric Blender AND Extruder Control - ExtruBlend
Control Your Blend and Extruder Gravimetrically
Total Product Quality Control
Eliminate the Risk
Raw Material and Time Savings
Features:
- The ExtruBlend will blend your raw materials to an accuracy of 0.1% AND control your extruded product weight to better than +/- 0.5% of target.
- Automatically compensates for variations in raw material bulk density, extrusion back pressure, ambient conditions and other factors affecting blending and extrusion processes.
- All the benefits of the GravEx and MiniBlend combined in one unot, most economical solution for gravimetric blending and throughput control.
- Two operator displays which have large digital display of set points and straight forward push button entry for operator settings, one for the MiniBlend control and one for the GravEx control.
- Integrated adaptor flange for feed throat mounting , top of blender prepared to accept hopper loaders.
- Stand alone mono or co-ex, OR fully integrated with Weighbatch AdvanTec central control system.

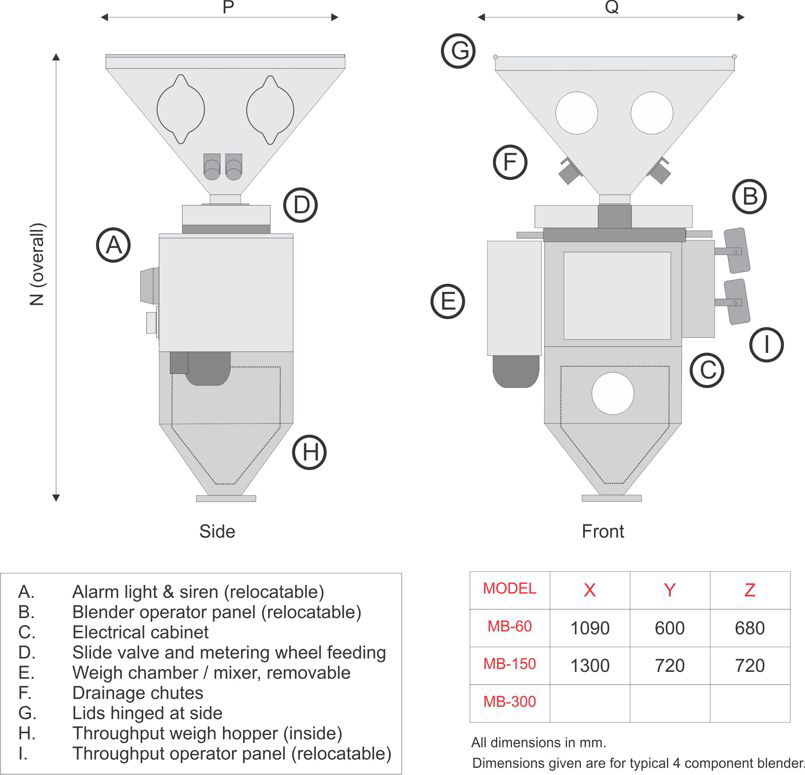

Typical Layout:
Specifications: Options:
- Standard models for 150, 300 and 600 kg/hr
- Supplied as base on any of the MB-150/300/600
- Dynamic parts in contact with the material are stainless steel
- Static parts in contact with the material are powder coated steel.
- Power supply single phase, 230 V, 50 Hz std.
- Pneumatic air supply 6 bar, regulator supplied.
- Output control modules for 10 turn potentiometer or push button speed control.
- Thickness display for film applications, requires operator entry of density and width.
- Wall thickness display for pipe applications, requires operator entry of diameter and density.
- Remote mounted operator controls.
- Printer port and software.
The ExtruBlend is a combined gravimetric blender and gravimetric extruder throughput controller in one compact device. It combines the features and benefits of the MiniBlend and GravEx in one unit.
It is the most economical solution for gravimetric blending and throughput control for a single or multiple extruders.
It is ideal for lines where the alternative blender mounting options of mezzanine or floor mount are not practical.
Being based on the MiniBlend gravimetric blender, all material is fully mixed prior to being released into the throughput control weigh hopper. This eliminates the weighing errors which occur in systems with mixers in the weigh hopper.
The ExtruBlend range is available in capacities of 150, 300 and 600 kg/hr, with up to 8 components. Higher capacities available on request.
Existing MiniBlend units can be upgraded to ExtruBlend.
