Gravimetric Blenders

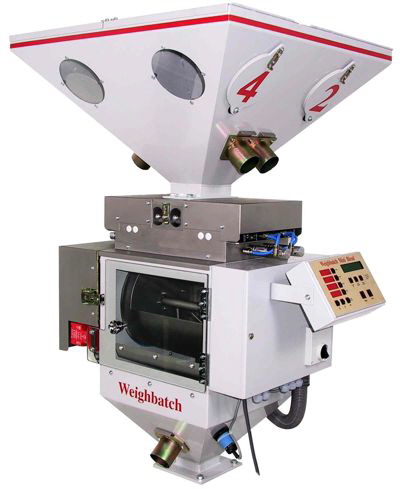

MiniBlend Series
Blend by Weight
0.1% Accuracy
Product Consistency
Save Time and Raw Materials
Models up to 2,400 kg/hr
Mix up to 8 Materials
Features:
- Unique “Dual Feed” technology combines the use of pneumatic slide valve to deliver the majority of each component and a metering wheel to accurately dose the last few grams to achieve each component’s target weight - this is how Weighbatch achieves high accuracy without compromising throughput.
- Operator panel has large digital display of set points with straight forward push button entry to set up, machine setter level with password for advanced settings.
- Fully encapsulated mixing chamber = no missed mixers or unmixed material.
- Steep hopper sides suitable for all free flowing materials including most regrind.
- Hinged lids on hoppers provide hopper loading mounting and easy access.
- Drainage chutes and inspection hatches on hoppers and storage chamber for quick material changes.
- Integrated adaptor flange for feed throat mounting.
Specifications:
Options:
- Models for 60, 150, 300, 600, 1,200 & 2,400 kg/hr
- 2, 4, 6 & 8 components standard, other configurations available on request.
- Dynamic parts in contact with the material are made from stainless steel.
- Static parts in contact with the material are powder coated mild steel.
- Power supply single phase, 230 V, 50 Hz.
- Pneumatic air supply 6 bar, regulator supplied.
Typical Layout:
- Floor stand for free standing operation beside the machine or centralised blending solution.
- Extended base for additional storage of mixed material.
- Remote operator control panel.
- Removable additive components.
- Agitator for non free flowing material.
- Printer and software port.
- Complete stainless steel construction.
- ExtruBlend base for extruder output control.
The MiniBlend range of gravimetric blenders are fully automatic gravimetric batch blenders primarilly for the plastics industry. The gravimetric blender sequentially doses each material, by weight, into a common weigh chamber/dynamic mixer assembly. Each and every batch is captured and mixed by the mixer before being released to the next process.
The MiniBlend gravimetric blenders have a unique dual rate feed mechanism which provides high throughput and high accuracy. All components can feed 0% to 100% with no operator changes.
